Site C Project Components

The project design for the Site C Clean Energy Project includes the following key components:

  • Access roads in the vicinity of the site and a temporary construction access bridge across the Peace River at the dam site.
  • Construction of two temporary cofferdams across the main river channel to allow for construction of the earthfill dam.
  • Worker accommodation at the dam site, with other workers being housed off site and in the region.
  • The realignment of six segments of Highway 29 over a total distance of 30 kilometres.
  • Shoreline protection at Hudson’s Hope.
  • Two new 500 kilovolt AC transmission lines that will connect the Site C facilities to the existing Peace Canyon Substation, along an existing right-of-way.
  • An 800-metre roller-compacted-concrete buttress to enhance seismic protection.
  • An earthfill dam, approximately 1,050 metres long and 60 metres high above the riverbed.
  • A generating station with six 183 MW generating units.
  • An 83-kilometre-long reservoir that will be, on average, two to three times the width of the current river.

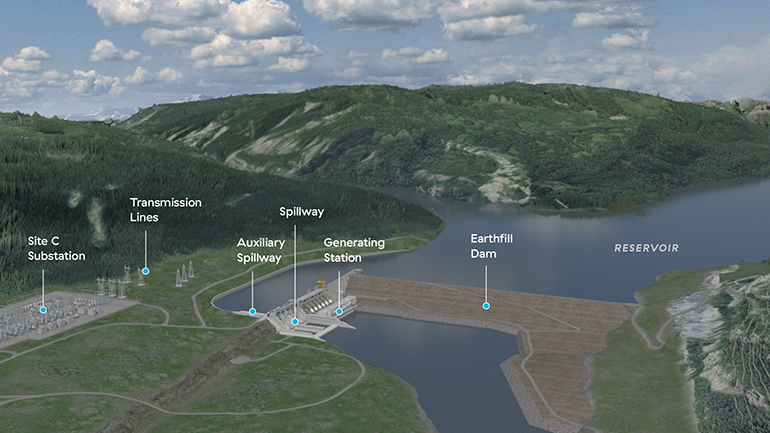

Site C artist's rendering, labeled, April 2018
